Ask EDA#

Ask EDA is the conversational (chat) interface built into the Nokia Event-Driven Automation (EDA) platform. It allows you to interact with Nokia EDA using natural-language chat, enabling quick queries, AIOps assistance, dashboard creation, and context-specific help.

Overview#

The AIOps implementation for Nokia EDA is built around a conversational chat interface, Ask EDA, that lets you interact with the platform using natural-language dialogue. Ask EDA provides the following high-level features:

• Chat interface with history: you can ask follow-up questions without re-entering the full context, and the conversation history is displayed inline.
• Multiple persistent conversations per user: you can create, delete, or rename a conversation. Persistence is maintained during a session; a restart of Nokia EDA may clear the data (transient persistence).
• Chart generation: The chat can produce and display charts such as line charts, pie charts, bar charts, counters, and tables. You can link directly to the query view from a generated table.
• Resource linking: Agents can embed links to referenced resources, allowing you to navigate to those resources easily.
• Workflow triggering: you can start workflows from the chat, receive links to generated artifacts, and see a summary of the results.
• Model-type control for queries: for more information, see Model selection options.
• Support for LLM providers with OpenAI-style API: for more information, see LLM providers.

Key concepts#

• Agentic AI: the main agent that orchestrates interactions with lower-level agents for task-specific purposes. Agents combine prompt engineering with additional resources such as workflows, APIs, and other agents.

• Tool: functionality that can be added to an agent through the common Manifest resource; the tools can be as workflows.

• LLM provider: a configuration object that registers an external large-language-model service (for example, OpenAI, Google) with endpoint, API key, and model metadata. Nokia EDA supports LLM providers that expose an OpenAI-compatible API endpoint (chat/completions or responses APIs)

Nokia EDA follows an extensible, agent-centric model. A main agent is always present, alongside a number of other agents with task-specific purposes. The list of agents is outlined in Agents.

Ask EDA extends the functionality provided in native query language (NQL) to be more context aware, and to allow follow up or iterative questions to refine information. The chat interface is equivalent to show commands on the CLI, where you can easily look back at previous results. It supports a alarm root cause and transaction detail analysis.

LLM providers#

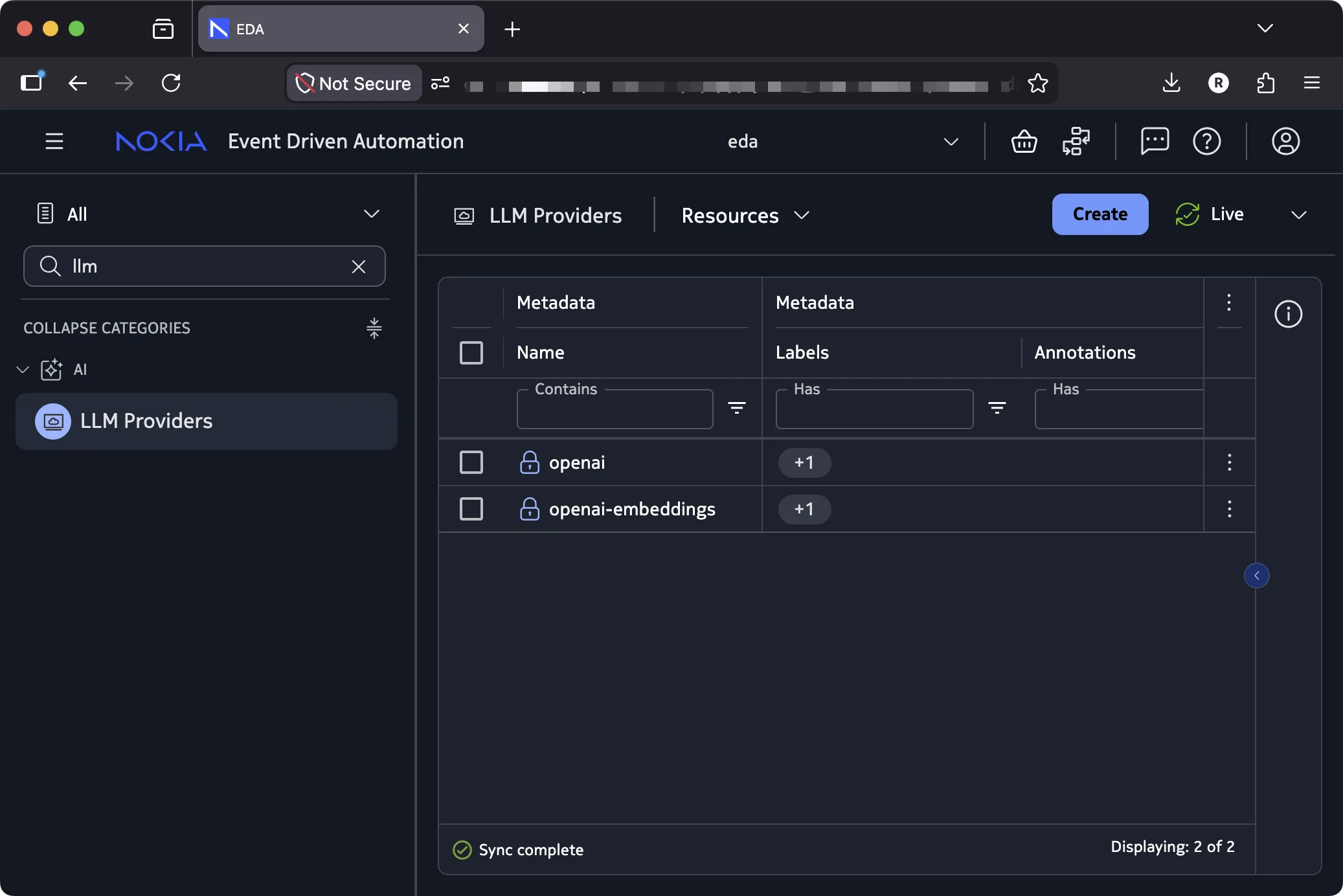

The Provider resource adds OpenAI-style API LLM providers to Nokia EDA. This resource defines:

• The endpoint URL where the provider is can be reached; this can be the model's host or an LLM gateway.
• The API Key

• A list of models:

  • The model name, as defined by the LLM host
  • An optional description of the model
  • The API type (chat/completions, responses or embeddings )
  • The intended use of the model: chat, routing, or reasoning
  • Various model behavior tuning, such as priority and temperature

apiVersion: ai.core.eda.nokia.com/v1
kind: Provider
metadata:
name: openai
namespace: eda-system
spec:
endpoint:
    url: https://api.openai.com/v1/responses
    apiKey: <your-openai-api-key>
models:
    - name: gpt-4.1
    description: Balanced GPT-4.1 for chat and tool calls
    type: Responses
    usage: [Chat]
    priority: Priority
    temperature: "0"
    supportNestedResponses: true
    - name: gpt-5-mini
    description: Fast lightweight model for routing/classification
    type: Responses
    usage: [Routing]
    priority: Priority
    supportNestedResponses: true
    - name: gpt-5.1
    description: Flagship reasoning model
    type: Responses
    usage: [Reasoning]
    priority: Priority
    reasoningLevel: [Low, Medium, High]
    supportNestedResponses: true

Agents#

The following agents currently exist:

Model selection options#

When you send a query, you can choose how the agent selects the underlying model:

• Auto: the tool or prompt selects whether to use a reasoning model or not.
• Standard: the called tool or prompt uses a non-reasoning model, if available. This model is for data retrieval or command execution.
• Reasoning: the called tool or prompt uses a reasoning model, if available. The reasoning model is typically used for analysis, synthesis, or explanation.

Using Ask EDA#

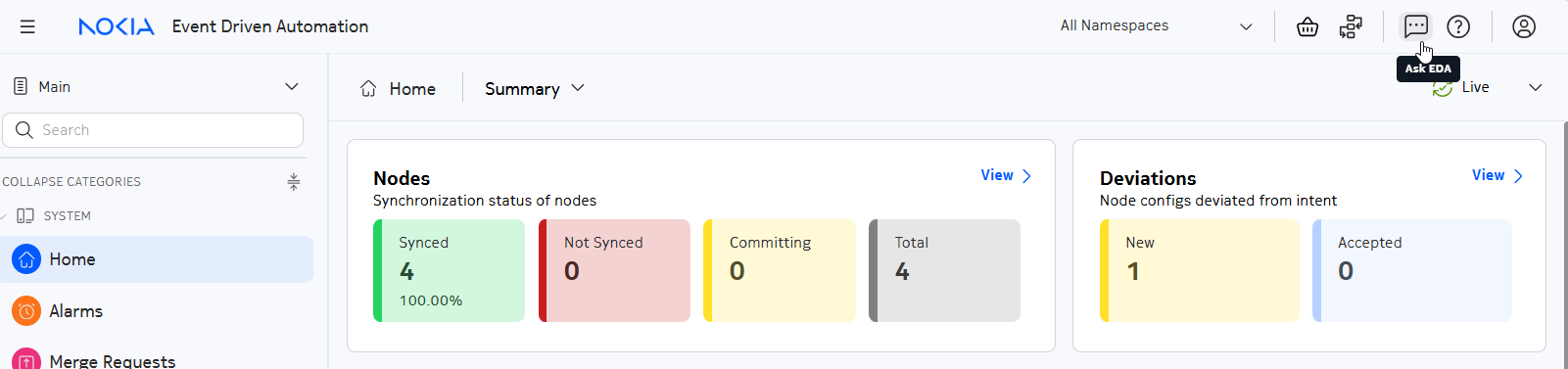

To access Ask EDA, click on the Ask EDA icon (a chat-bubble) in the top-right corner of any EDA UI screen.

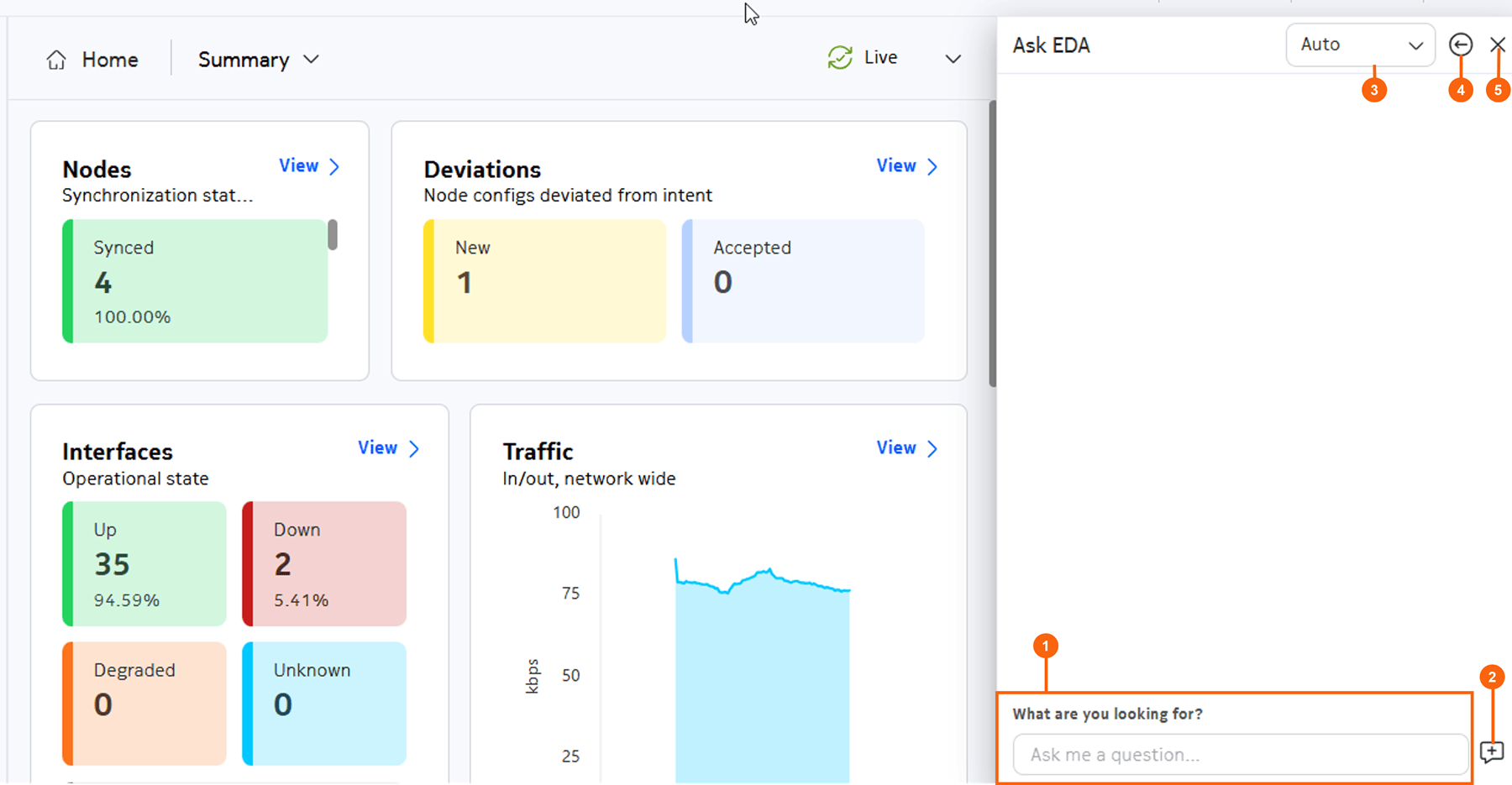

When you click the Ask EDA icon, a chat panel opens, docked to the right of the screen.

Table: Elements of the Ask EDA window

You can set up the Ask EDA chat window to display in one of the following modes:

• Docked mode: The chat occupies a pane on the right, leaving most of the EDA workspace available for other tasks.
• Full screen mode: Click the Full screen toggle to cover the main UI view with the chat.

Managing conversations#

When you first open Ask EDA, a new conversation is automatically created. When you make a query, Nokia EDA provides a default title for your conversation and the Open conversation history icon becomes visible; click it to display the conversation list.

All active and completed conversations appear in the side-bar, ordered by most recent activity. Click a conversation to load its full chat history.

Conversations persist for the duration of the Nokia EDA session. If Nokia EDA is restarted, transient conversations are cleared unless the administrator has enabled permanent storage.

You can rename a conversation or delete it entirely.

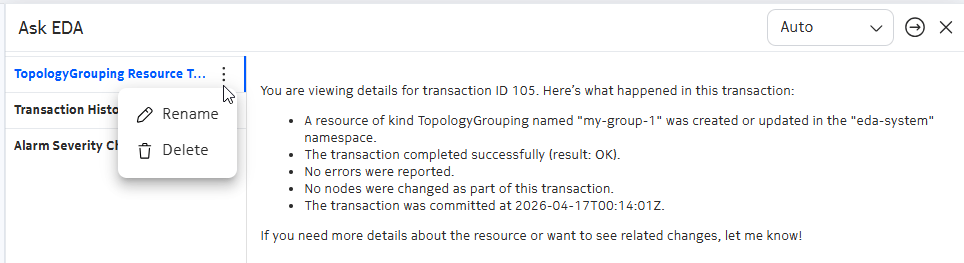

Click the action menu for a conversation and select one of the following actions:

• Click Rename to provide a new title. Then, click the check icon when you are finished.
• Click Delete to remove the conversation from the list.

Contextual help#

Currently, Ask EDA provides contextual help for transactions and alarms.

• For alarms, a sparkle icon appears in the Alarm Details view. Click it to open Ask EDA with the alarm ID pre-populated. Ask EDA returns a root-cause analysis, suggested remediation steps, and links to related resources.

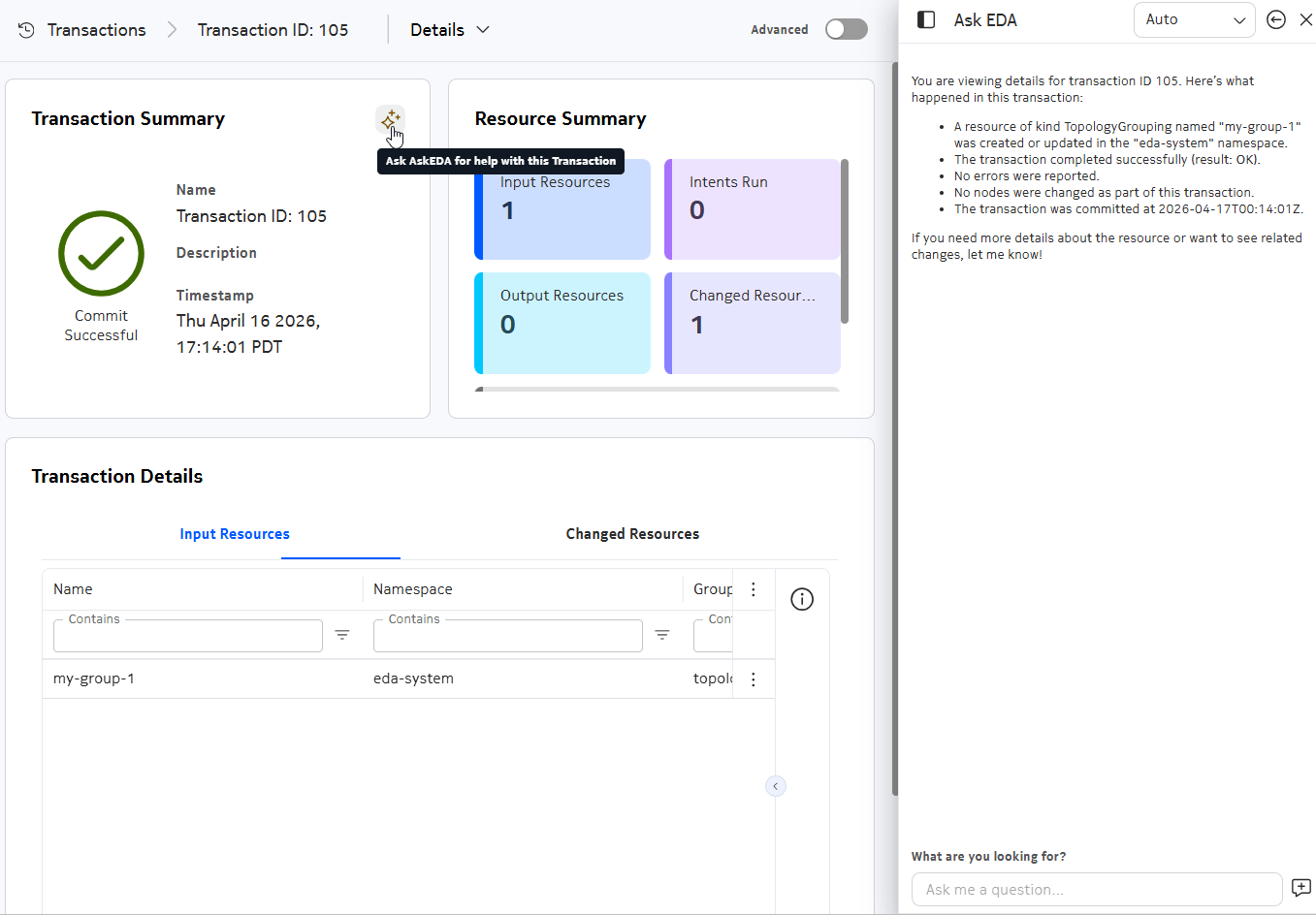

• For transactions, a sparkle icon appears in the Transactions>Details view. When you click the sparkle icon, the Ask EDA panel displays the summary of changes, success/failure status, and, if failed, an explanation of error messages for the selected transaction.  



Dashboard generation#

Ask EDA can help create dashboards by generating individual dashlets based on prompts that you provide; it can create the following types of dashlets:

• Pie chart
• Line chart
• Table
• Counter

Ask EDA can generate multiple types of dashlets from your prompt. If you do not provide a dashlet type, Ask EDA infers the most appropriate type of dashlet based based on your requested data. If it cannot infer the dashlet type, it asks you to select one.

Once the dashlet is generated, you can drag and drop it in an opened dashboard designer view. For more information about how to build dashboards, see Dashboards.
