Bridge Domain#

Virtual Networks → BDBridge Domains

A bridge or broadcast domain is a collection of hosts that can talk to each other using switched (layer 2) packets, rather than routed (layer 3) packets. A BridgeDomain resource is the EDA abstraction of a broadcast domain: it provides connectivity between hosts connected to two or more (sub-)interfaces.

One or more hosts can be connected to a BridgeDomain service through a sub-interface, which is the combination of a physical interface and a VLAN tag. In EDA, there are two objects that create sub-interfaces:

  • The BridgeInterface resource combines one Interface with one VLAN tag and attaches it to a single BridgeDomain
  • The VLAN resource combines a set of Interface resources with one VLAN tag each, and attaches them to a single BridgeDomain

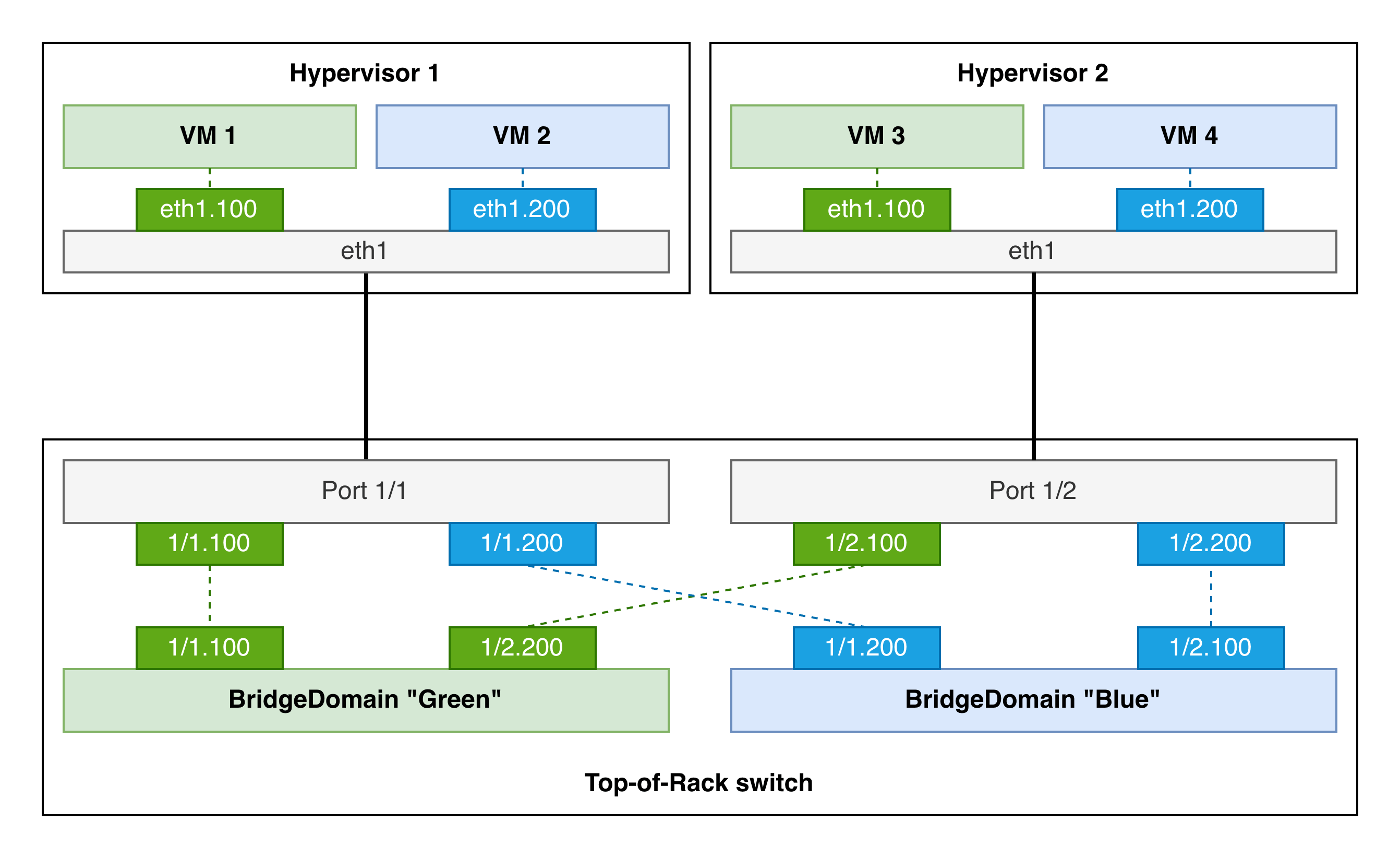

BridgeDomain graphical representation

To allow the hosts in a BridgeDomain to connect to other IP subnets (routed traffic), an IRBInterface can connect the BridgeDomain to a Router. The hosts will use the gateway IP configured on the IRBInterface as a next-hop for routed traffic.

BridgeDomain types#

A BridgeDomain is a virtual network service, and can be local-only or distributed over multiple nodes. There are 3 types of BridgeDomains:

  • Simple: creates a local-only BridgeDomain service, where connectivity is enabled only between physical interfaces on the node where the service is configured.
  • EVPNVXLAN: creates a distributed BridgeDomain service, where connectivity between local and remotely attached interfaces is encapsulated in an EVPN service tunnel over a VxLAN transport tunnel.
  • EVPNMPLS: creates a distributed BridgeDomain service, where connectivity between local and remotely attached interfaces is encapsulated in an EVPN service tunnel over an MPLS transport tunnel.

Service tunnel requirements#

If the type of the BridgeDomain is either EVPNVXLAN or EVPNMPLS, EVPN routes must be exchanged via the underlay for the establishment of the service tunnels.

Transport tunnel requirements#

If the type of the BridgeDomain is EVPNVXLAN, IP reachability is required to all system IP addresses of the nodes that participate in the service (unless a BridgeDomainInterconnect is used).

If the type of the BridgeDomain is EVPNMPLS, label-switched transport tunnels must be established between all nodes that participate in the service (unless a BridgeDomainInterconnect is used).

EVIs and VNIs#

An Ethernet Virtual Instance or EVI is an EVPN concept, while a VxLAN Network Identifier (VNI) is a VxLAN concept. A thorough explanation of both protocols and related concepts is beyond the scope of this article, but it is worth talking about the assignment of these identifiers.

Both are integer numbers and are globally significant, meaning that all nodes must use the same values for the same service. To avoid accidentally assigning the same identifier to two different services, it is recommended to use the eviPool and encapOptions.vxlan.vniPool properties to let EDA take care of ensuring global uniqueness.

Note

Technically, the VNIs are only significant within an EVPN domain, and may be reused in different EVPN domains. However, due to the large number of VNIs available, it is recommended to use each VNI only once within your entire network.

If the BridgeDomain service is meant to inter-op with (existing) network elements that are not managed by EDA, consider using a static EVI (property evi) and VNI (property encapOptions.vxlan.vni) instead of a pool.

Dependencies#

The BridgeDomain is a purely administrative object, and has no required dependencies. Note that without other resources (such as BridgeInterfaces and VLANs) connected to it, the service will not be deployed anywhere.

Referenced resources#

IndexAllocationPool#

The EVI and VNI numbers can be allocated by EDA from an index allocation pool, which ensures that every index is only used once. For more information, check the EVIs and VNIs section of this article.

Examples#

apiVersion: services.eda.nokia.com/v2
kind: BridgeDomain
metadata:
  name: stretched-l2
  namespace: services
spec:
  encapOptions:
    vxlan:
      tunnelIndexPool: tunnel-index-pool
      vniPool: vni-pool
  eviPool: evi-pool
  macLearning:
    agingTimeSeconds: 300
    enabled: true
  type: EVPNVXLAN

cat << 'EOF' | kubectl apply -f -
apiVersion: services.eda.nokia.com/v2
kind: BridgeDomain
metadata:
  name: stretched-l2
  namespace: services
spec:
  encapOptions:
    vxlan:
      tunnelIndexPool: tunnel-index-pool
      vniPool: vni-pool
  eviPool: evi-pool
  macLearning:
    agingTimeSeconds: 300
    enabled: true
  type: EVPNVXLAN
EOF

Custom Resource Definition#

To browse the Custom Resource Definition go to crd.eda.dev.

BridgeDomain

services.eda.nokia.com / v2

SPEC

The BridgeDomain enables the configuration and management of Layer 2 virtual networks. It includes settings for VNI, EVI, route targets for import and export, and tunnel index allocation. Additionally, the specification allows for advanced features such as MAC address table limits, aging, Proxy ARP and detection of MAC and IP duplication.

  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #

STATUS

BridgeDomainStatus defines the observed state of BridgeDomain

  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
  • #
