Terraform#

Nokia EDA Providers Reference · Beta release

Terraform is open-source infrastructure as code software that allows users to define resources in human-readable configuration files, which can be versioned, reused, and shared.

Terraform can manage low-level components such as compute, storage, and networking resources, as well as high-level components like DNS entries and SaaS features. In the context of Nokia EDA, Terraform is used to declaratively manage EDA Resources¹ by defining them in Terraform files and applying them to the EDA cluster using providers from Nokia.

Terraform Providers for EDA#

Terraform creates and manages resources on cloud platforms and other services through their application programming interfaces (APIs). Providers enable Terraform to interact with virtually any platform or service that exposes an API.

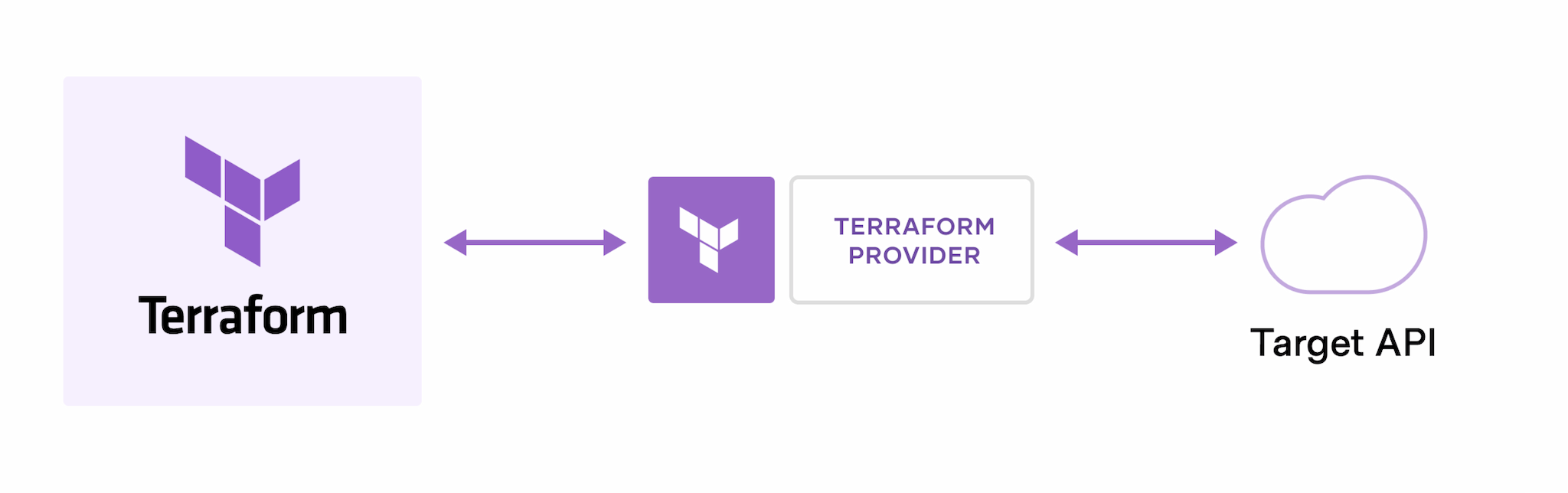

In the diagram above, the Nokia EDA API server represents the Target API, and the Terraform providers published by Nokia are used by Terraform to interface with it.

Nokia EDA offers unprecedented extensibility, allowing users to install EDA applications at any time. As a result, its API surface is highly dynamic and extensible. Rather than a single Terraform provider for EDA, each EDA application has its own standalone provider.
Terraform users install providers for each EDA application they wish to manage, specifying the desired API version.

The Terraform providers for EDA are open sourced and published under the nokia-eda namespace in the Terraform registry.

Versions#

Providers include two types of versioning information:

API Version

This refers to the specific application API version for which the provider is built. In EDA, applications may have several API versions (e.g., v1alpha1, v1, v2, and so on). The provider's name will include the API version; for example, the interfaces-v1alpha1 provider is designed to be used with the Interfaces v1alpha1 API version.

This means automation users should focus on the API version supported, rather than the installed application version.

Provider Version

This is the version of the Terraform provider itself, which is independent of the Application API version. It follows Semantic Versioning principles and indicates changes to the provider's functionality, compatibility, documentation, and more. The provider version is visible in the registry UI and in the Git repository where the provider's code is stored.

In summary, for the provider with the name interfaces-v1alpha1 and version 0.1.0:

• the application this provider is built for is Interfaces
• the Interfaces API version is v1alpha1
• and the provider version is 0.1.0.

Installation#

To install the Terraform providers for Nokia EDA, add the required provider block to your Terraform file²:

terraform {
  required_providers {
    interfaces-v1alpha1 = {
      source  = "nokia-eda/interfaces-v1alpha1"
      version = "0.0.5"
    }
  }
}

The version can be omitted; Terraform will default to the latest version.

When you have the required_providers block in place, the Terraform CLI will download the required provider binary when initializing a working directory. It can automatically download providers from a Terraform registry:

terraform init

Initializing the backend...
Initializing provider plugins...
- Finding nokia-eda/interfaces-v1alpha1 versions matching "0.0.5"...
- Installing nokia-eda/interfaces-v1alpha1 v0.0.5...
- Installed nokia-eda/interfaces-v1alpha1 v0.0.5 (self-signed, key ID 6F5BC22CD9F83F19)
Partner and community providers are signed by their developers.
If you'd like to know more about provider signing, you can read about it here:
https://developer.hashicorp.com/terraform/cli/plugins/signing
Terraform has created a lock file .terraform.lock.hcl to record the provider
selections it made above. Include this file in your version control repository
so that Terraform can guarantee to make the same selections by default when
you run "terraform init" in the future.


Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.

Configuration#

The provider needs to be configured with the proper credential information before it can be used. Provider configuration is typically defined in the same file as your provider specifications. For example, if you defined your provider in the providers.tf file above, you can add the provider configuration block there as well:

terraform {
  required_providers {
    interfaces-v1alpha1 = {
      source  = "nokia-eda/interfaces-v1alpha1"
      version = "0.1.0"
    }
  }
}

provider "interfaces-v1alpha1" {
  # Configuration options
}

Options#

At a minimum, provider configuration³ specifies the API server address and authentication parameters.

Base URL

With base_url provider configuration, users set the address of the EDA API server. This is the same address you use to access the EDA UI and includes the schema and port. For example: https://eda-demo.test.io:9443.

Authentication options

Terraform, like other non-browser-based API clients, uses the Resource Owner Password Credentials Grant OAuth flow for authentication. This flow requires the API client to provide the following parameters:

EDA Client ID

The eda_client_id is an identifier for your API client. It is used to authenticate your requests to the EDA API. By default EDA comes with a pre-created client id of eda. Administrators can create other clients.

Default value: eda.

EDA Client Secret

The secret that is associated with the eda_client_id. Stored in Keycloak and can be retrieved by administrators and provided to the users of the API. Refer to the API documentation to see how to fetch the eda_client_secret using Keycloak UI.

EDA Username and Password

The API client - Terraform - should have credentials of the EDA user it authenticates as. This is done by providing the eda_username and eda_password parameters in the provider configuration.

Default value for both is admin if not set.

TLS Verification

With tls_skip_verify boolean flag a user can select whether to verify the TLS certificate presented by EDA's API server or not.

Default value: false (means validate certificate)

With the mandatory options set, the provider configuration takes the following form:

provider "interfaces-v1alpha1" {
  base_url          = "https://eda-demo.test.io:9443"
  eda_client_id     = "eda" # default value, can be omitted if not changed
  eda_client_secret = "your_client_secret"
  eda_username      = "your_username"
  eda_password      = "your_password"
}

Environment variables#

All configuration variables that can be provided to the EDA providers have a matching environment variable. The below table summarizes all available options:

Bulk Installation#

If selecting and configuring providers in an a-la-carte manner feels like a cumbersome approach given they share the same config values, here is an all-you-can-eat buffet approach that lists a bunch of providers you can put in your providers.tf file and configure them all using variables:

variable "base_url" {
  default = "https://eda-demo.test.io:9443"
}

variable "eda_client_secret" {
  default = "your_client_secret"
}

variable "eda_username" {
  default = "your_username"
}

variable "eda_password" {
  default = "your_password"
}

terraform {
  required_providers {
    interfaces-v1alpha1 = {
      source = "nokia-eda/interfaces-v1alpha1"
    }
    fabrics-v1alpha1 = {
      source = "nokia-eda/fabrics-v1alpha1"
    }
    # add more providers here
  }
}

provider "interfaces-v1alpha1" {
  base_url          = var.base_url
  eda_client_secret = var.eda_client_secret
  eda_username      = var.eda_username
  eda_password      = var.eda_password
}

provider "fabrics-v1alpha1" {
  base_url          = var.base_url
  eda_client_secret = var.eda_client_secret
  eda_username      = var.eda_username
  eda_password      = var.eda_password
}

# add more providers configs here if needed

Using the Providers#

With the providers configured a user can start managing their infrastructure in EDA using Terraform by defining the resources and data-sources that the providers expose.

Resources#

Resources are the most important element in the Terraform language. Each resource block describes one or more infrastructure objects in general, and in EDA's case, these are the resources you create in EDA, such as an Interface, a Virtual Network, a Fabric, a User, etc.

Each provider exposes its own set of resources and they are documented in the provider's documentation on Terraform registry, for example, here is a link to the list of resources provided by the Interfaces provider.

The most obvious resource in the Interfaces app is the interface itself which, as the name suggests, allows users to manage Interface resources in EDA. The Terraform resources are modelled after the EDA resources, therefore it is very easy to map between the two, they are essentially the same.

For example, let's compare what it takes to define an interface ethernet-1/14 on leaf1 using the Try EDA Playground from the Getting Started guide using EDA UI and Terraform:

EDA UITerraform

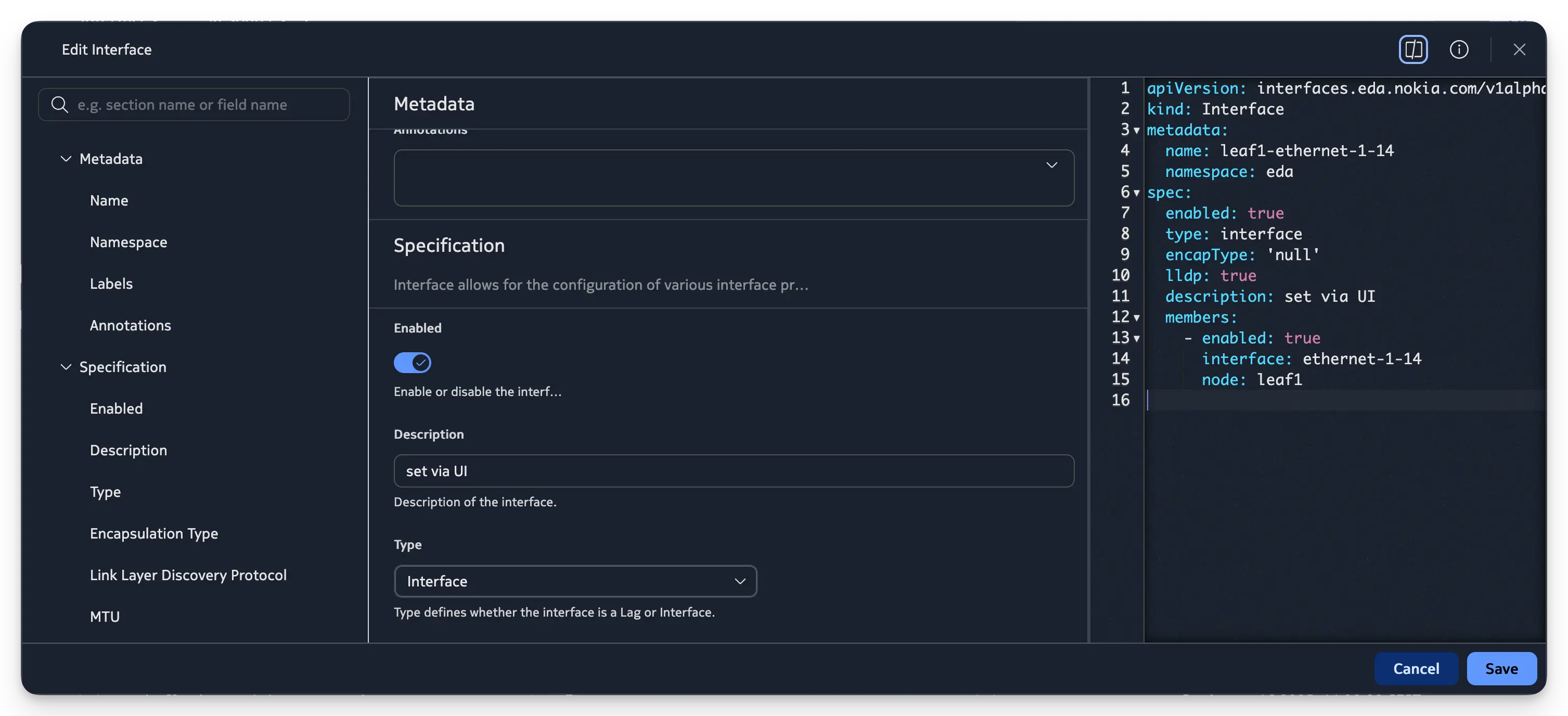

Navigating to the Topology → Interfaces in the left sidebar and creating a new interface with the following parameters:

• name: leaf1-ethernet-1-14
• namespace: eda
• enabled: true
• description: "set via UI"
• LLDP: enabled
• encap type: 'null'
• members:
  • interface: ethernet-1-14
  • node: leaf1

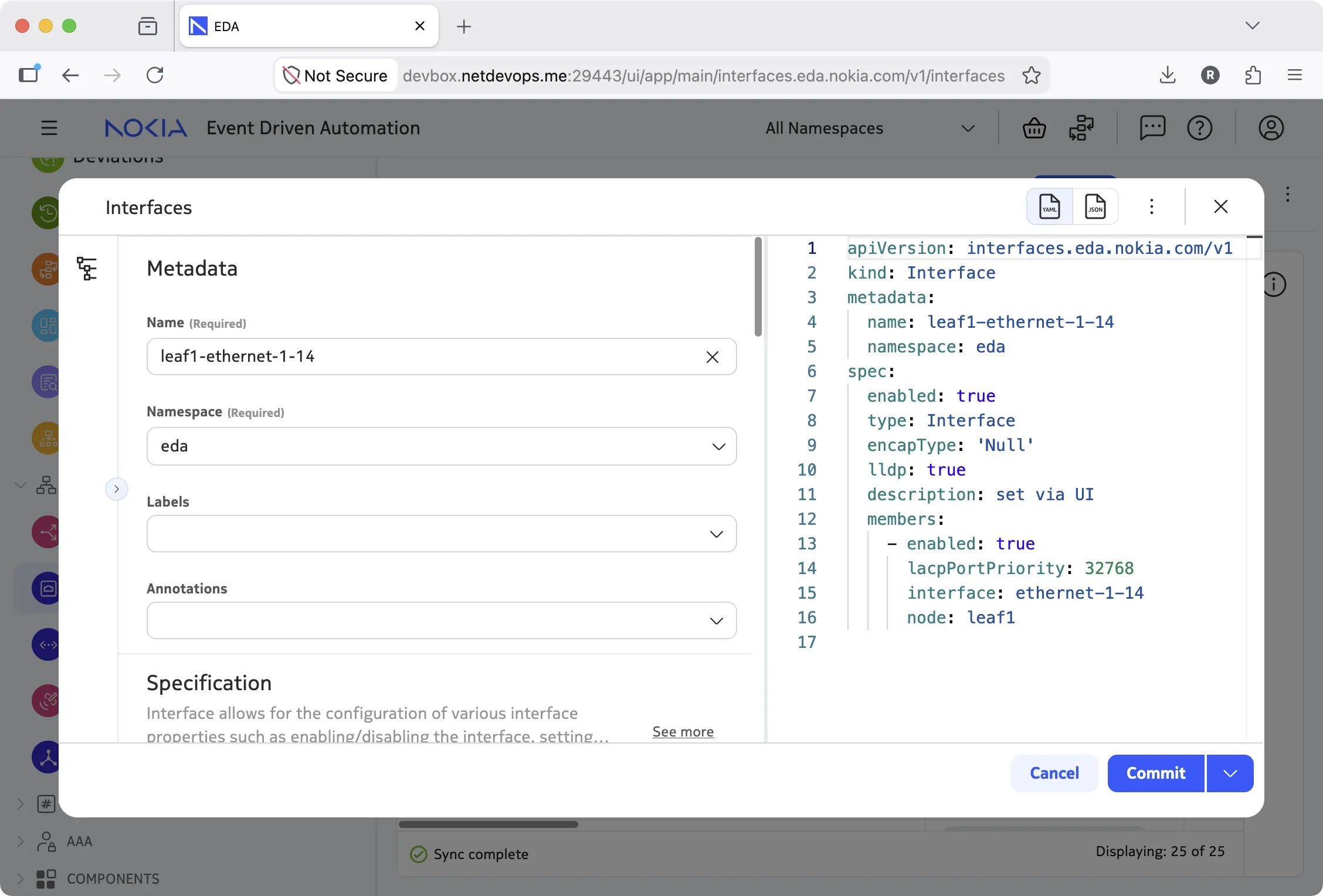

Would be represented like this:

Now look what would be the equivalent Terraform configuration in the next tab.

With terraform, the resources contain the same fields and take in the same values as in the UI. Some may say "obviously", because at the end they use the same EDA API to create manage the resources.

Here is the definition of the same interface in the Hashicorp Configuration Language that Terraform uses:

resource "interfaces-v1alpha1_interface" "leaf1-ethernet-1-14" {
  metadata = {
    name      = "leaf1-ethernet-1-14"
    namespace = "eda"
  }
  spec = {
    enabled     = true
    encap_type  = "null"
    type        = "interface"
    lldp        = true
    description = "set via Terraform"
    members = [{
      enabled   = true
      node      = "leaf1"
      interface = "ethernet-1-14"
    }]
  }
}

Note

Fields that have the same name in a resource spec must be uniquely identifiable, which result in the same-named fields being disambiguated using _1, _2 suffix. For example, if the bgp field is present in the fabric provider at different levels of the hierarchy, it will be referenced as bgp_1, bgp_2, etc. The provider reference will show the accurate names as expected to be provided by the user.

As shown in the Terraform tab above, the resources for the EDA applications are almost indistinguishable from the YAML representation you see in the EDA UI. One thing to note is that the Terraform resource omits the apiVersion and kind fields, because they are set by the provider already.

Data-sources#

Data sources allow Terraform to use information defined outside of Terraform, defined by another separate Terraform configuration. Each provider exposes its own set of data-sources and they are documented in the provider's documentation on Terraform registry, for example, here is a link to the list of resources provided by the Interfaces provider.

You will notice that the data-sources follow a particular pattern: a data-source ending with _list fetches multiple instances of a resource, while a data-source without it fetches a single instance. Here are some examples of how data sources can be used in different scenarios:

# Get all interfaces.
data "interfaces-v1alpha1_interface_list" "all" {
  namespace = "eda"
}

# Get all interfaces with label selector
data "interfaces-v1alpha1_interface_list" "interswitch" {
  namespace     = "eda"
  labelselector = "eda.nokia.com/role=interSwitch"
}

# Get a single interface by name
data "interfaces-v1alpha1_interface" "leaf1_ethernet_1_1" {
  namespace = "eda"
  name      = "leaf1-ethernet-1-1"
}

Import#

Terraform supports importing existing resources into your Terraform state. This is useful for managing resources that were created before you started to use Terraform or were created outside of Terraform. This is known as a brownfield deployment scenario.

The import documentation covers various ways to import resources, including the generate configuration method that we show below to import a couple of existing interfaces into the interfaces.tf file⁴:

import {
  to = interfaces-v1alpha1_interface.leaf1-ethernet-1-1
  id = "eda/leaf1-ethernet-1-1"
}

import {
  to = interfaces-v1alpha1_interface.leaf2-ethernet-1-1
  id = "eda/leaf2-ethernet-1-1"
}

By adding these import statements to your module and running terraform plan -generate-config-out=interfaces.tf, Terraform will:

1. Check the state file for the imported resources and proceed with fetching them if the state does not contain them.
2. Reach out to the EDA API fetching the resources using the .import.id value defined.
3. Create the interfaces.tf file where the imported resources will be written.

After the successful import, you can remove the import blocks.

The import ID is a unique identifier for the resource being imported. In EDA, this will typically be the resource's namespace and name, formatted as namespace/name.

Issues and Limitations#

1. Workflows cannot be triggered via Terraform.
2. Transaction-based operations are not supported yet. These operations, where resources are jointly committed via the Transaction API, are instead managed via REST API calls to the respective application endpoints, not through the Transaction API.
3. Direct calls to application endpoints in the current release do not store node/resource diffs. Node diffs are only stored when using the Transaction API.
4. Fields that have the same name in a resource spec must be uniquely identifiable, which result in the same-named fields being disambiguated using _1, _2 suffix. For example, if the bgp field is present in the fabric provider at different levels of the hierarchy, it will be referenced as bgp_1, bgp_2, etc. The provider reference will show the accurate names as expected to be provided by the user.
